MOAAP: Multi-Object Analysis of Atmospheric Phenomena - Tutorial
This notebook demonstrates the usage of the MOAAP tracking algorithm. It is divided into two parts:
Standard Workflow: Running MOAAP on real atmospheric data (ERA5 sample) to identify phenomena like MCSs.
Algorithm Deep-Dive: Testing the core segmentation algorithm (Watershedding) on idealized synthetic data to understand how objects are defined in 2D vs 3D.
[1]:
#!pip install git+https://github.com/andreas-prein/MOAAP.git # (only if the package is not already installed)
Defaulting to user installation because normal site-packages is not writeable
DEPRECATION: Loading egg at /glade/u/home/prein/MyPython_Programs/python/packages/cdo-1.2.1/lib/python2.7/site-packages/cdo-1.2.1-py2.7.egg is deprecated. pip 25.1 will enforce this behaviour change. A possible replacement is to use pip for package installation. Discussion can be found at https://github.com/pypa/pip/issues/12330
Collecting git+https://github.com/andreas-prein/MOAAP.git
Cloning https://github.com/andreas-prein/MOAAP.git to /glade/derecho/scratch/prein/tmp/pip-req-build-tjs92rnu
Running command git clone --filter=blob:none --quiet https://github.com/andreas-prein/MOAAP.git /glade/derecho/scratch/prein/tmp/pip-req-build-tjs92rnu
Resolved https://github.com/andreas-prein/MOAAP.git to commit a419659e97d59747576ef1535b90f4e8b09a85fb
Installing build dependencies ... done
Getting requirements to build wheel ... done
Preparing metadata (pyproject.toml) ... done
Requirement already satisfied: numpy in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from moaap==0.1.0) (1.26.4)
Requirement already satisfied: scipy in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from moaap==0.1.0) (1.15.1)
Requirement already satisfied: matplotlib in /glade/u/home/prein/.local/lib/python3.12/site-packages (from moaap==0.1.0) (3.8.4)
Requirement already satisfied: netCDF4 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from moaap==0.1.0) (1.7.2)
Requirement already satisfied: xarray in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from moaap==0.1.0) (2025.1.1)
Requirement already satisfied: pandas in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from moaap==0.1.0) (2.2.3)
Requirement already satisfied: tqdm in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from moaap==0.1.0) (4.67.1)
Requirement already satisfied: scikit-image in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from moaap==0.1.0) (0.25.1)
Requirement already satisfied: cartopy in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from moaap==0.1.0) (0.24.0)
Requirement already satisfied: shapely in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from moaap==0.1.0) (2.0.6)
Requirement already satisfied: psutil in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from moaap==0.1.0) (6.1.1)
Requirement already satisfied: metpy in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from moaap==0.1.0) (1.6.3)
Requirement already satisfied: packaging>=21 in /glade/u/home/prein/.local/lib/python3.12/site-packages (from cartopy->moaap==0.1.0) (26.0)
Requirement already satisfied: pyshp>=2.3 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from cartopy->moaap==0.1.0) (2.3.1)
Requirement already satisfied: pyproj>=3.3.1 in /glade/u/home/prein/.local/lib/python3.12/site-packages (from cartopy->moaap==0.1.0) (3.6.1)
Requirement already satisfied: contourpy>=1.0.1 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from matplotlib->moaap==0.1.0) (1.3.1)
Requirement already satisfied: cycler>=0.10 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from matplotlib->moaap==0.1.0) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from matplotlib->moaap==0.1.0) (4.55.6)
Requirement already satisfied: kiwisolver>=1.3.1 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from matplotlib->moaap==0.1.0) (1.4.8)
Requirement already satisfied: pillow>=8 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from matplotlib->moaap==0.1.0) (11.1.0)
Requirement already satisfied: pyparsing>=2.3.1 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from matplotlib->moaap==0.1.0) (3.2.1)
Requirement already satisfied: python-dateutil>=2.7 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from matplotlib->moaap==0.1.0) (2.9.0.post0)
Requirement already satisfied: pint>=0.17 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from metpy->moaap==0.1.0) (0.24.4)
Requirement already satisfied: pooch>=1.2.0 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from metpy->moaap==0.1.0) (1.8.2)
Requirement already satisfied: traitlets>=5.0.5 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from metpy->moaap==0.1.0) (5.14.3)
Requirement already satisfied: pytz>=2020.1 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from pandas->moaap==0.1.0) (2024.1)
Requirement already satisfied: tzdata>=2022.7 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from pandas->moaap==0.1.0) (2025.1)
Requirement already satisfied: cftime in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from netCDF4->moaap==0.1.0) (1.6.4)
Requirement already satisfied: certifi in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from netCDF4->moaap==0.1.0) (2025.1.31)
Requirement already satisfied: networkx>=3.0 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from scikit-image->moaap==0.1.0) (3.4.2)
Requirement already satisfied: imageio!=2.35.0,>=2.33 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from scikit-image->moaap==0.1.0) (2.36.1)
Requirement already satisfied: tifffile>=2022.8.12 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from scikit-image->moaap==0.1.0) (2024.12.12)
Requirement already satisfied: lazy-loader>=0.4 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from scikit-image->moaap==0.1.0) (0.4)
Requirement already satisfied: platformdirs>=2.1.0 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from pint>=0.17->metpy->moaap==0.1.0) (4.3.6)
Requirement already satisfied: typing_extensions>=4.0.0 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from pint>=0.17->metpy->moaap==0.1.0) (4.12.2)
Requirement already satisfied: flexcache>=0.3 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from pint>=0.17->metpy->moaap==0.1.0) (0.3)
Requirement already satisfied: flexparser>=0.4 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from pint>=0.17->metpy->moaap==0.1.0) (0.4)
Requirement already satisfied: requests>=2.19.0 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from pooch>=1.2.0->metpy->moaap==0.1.0) (2.32.3)
Requirement already satisfied: six>=1.5 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from python-dateutil>=2.7->matplotlib->moaap==0.1.0) (1.17.0)
Requirement already satisfied: charset_normalizer<4,>=2 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from requests>=2.19.0->pooch>=1.2.0->metpy->moaap==0.1.0) (3.4.1)
Requirement already satisfied: idna<4,>=2.5 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from requests>=2.19.0->pooch>=1.2.0->metpy->moaap==0.1.0) (3.10)
Requirement already satisfied: urllib3<3,>=1.21.1 in /glade/u/apps/opt/conda/envs/npl-2025a/lib/python3.12/site-packages (from requests>=2.19.0->pooch>=1.2.0->metpy->moaap==0.1.0) (1.26.19)
Building wheels for collected packages: moaap
Building wheel for moaap (pyproject.toml) ... done
Created wheel for moaap: filename=moaap-0.1.0-py3-none-any.whl size=68712 sha256=fe783de058dad608f28eecb85611f1c8f0d8a4bae02c86d4351061c629fe4640
Stored in directory: /glade/derecho/scratch/prein/tmp/pip-ephem-wheel-cache-vq7ms78_/wheels/ce/d5/fe/1aa5ed853c7827475331c1aeeeac8ddab7c8edc89fa0582f62
Successfully built moaap
Installing collected packages: moaap
Successfully installed moaap-0.1.0
[2]:
%load_ext autoreload
%autoreload 2
import numpy as np
import xarray as xr
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.animation as animation
from IPython.display import HTML, display
import os
import warnings
import pickle
import cartopy.crs as ccrs
warnings.filterwarnings("ignore")
# --- MOAAP Imports ---
# Main Driver
from moaap import moaap
# Segmentation Tools
from moaap.utils.segmentation import (
watershed_2d_overlap,
watershed_3d_overlap_parallel
)
Part 1: Running MOAAP on Real Data
In this section, we load a sample dataset (24 hours of ERA5 data) and run the main moaap driver to identify atmospheric objects.
[3]:
# 1. Load Data
# Ensure you have the sample file '20210701-04_MOAAP-Input_24h.nc' in your directory
# If not, you might need to download it (e.g., via gdown as in the original tutorial)
try:
data_vars = xr.open_dataset('20210701-04_MOAAP-Input_24h.nc')
print("Data loaded successfully.")
except FileNotFoundError:
!gdown 1hD9hD3c9rBhcTN-c5FN87l0pHp_SCscE
data_vars = xr.open_dataset('20210701-04_MOAAP-Input_24h.nc')
print("Data downloaded and loaded successfully.")
# 2. Setup Parameters
dT = 1 # time interval [hours]
Mask = np.ones_like(data_vars['lon'].values) # Global tracking
DataName = 'ERA5'
OutputFolder = 'moaap_output/'
if not os.path.exists(OutputFolder):
os.makedirs(OutputFolder)
time_datetime = pd.to_datetime(data_vars['time'].values)
Downloading...
From (original): https://drive.google.com/uc?id=1hD9hD3c9rBhcTN-c5FN87l0pHp_SCscE
From (redirected): https://drive.google.com/uc?id=1hD9hD3c9rBhcTN-c5FN87l0pHp_SCscE&confirm=t&uuid=f2322f1d-d759-4205-863e-819aad781e13
To: /glade/u/home/prein/MajorCodeDevelopments/Feature_Tracker/MOAAP_v2.0/MOAAP/20210701-04_MOAAP-Input_24h.nc
100%|███████████████████████████████████████| 2.41G/2.41G [00:16<00:00, 146MB/s]
Data downloaded and loaded successfully.
Run the Tracking
We call the moaap function. Note that we are only passing pr (Precipitation) and tb (Brightness Temperature) for this example to detect MCSs (Mesoscale Convective Systems). Other variables are set to None to speed up this tutorial.
[4]:
# Clean up previous run
if os.path.exists(f"{OutputFolder}/202107_ERA5_ObjectMasks__dt-1h_MOAAP-masks.nc"):
os.remove(f"{OutputFolder}/202107_ERA5_ObjectMasks__dt-1h_MOAAP-masks.nc")
# Run MOAAP
object_split = moaap(
data_vars['lon'],
data_vars['lat'],
time_datetime,
dT,
Mask,
pr=data_vars['PR'].values,
tb=data_vars['Tb'].values,
DataName=DataName,
OutputFolder=OutputFolder,
js_min_anomaly=12,
MinTimeJS=12,
# Set others to None for this tutorial
v850=None, u850=None, t850=None, q850=None,
slp=None, ivte=None, ivtn=None,
z500=None, v200=None, u200=None
)
The provided variables allow tracking the following phenomena
| phenomenon | tracking |
---------------------------
Jetstream | no
PSL CY/ACY | no
Z500 CY/ACY | no
COLs | no
IVT ARs | no
MS ARs | no
Fronts | no
TCs | no
MCSs | yes
clouds | yes
Equ. Waves | yes
---------------------------
======> track tropical waves
track tropical waves
work on ER
Only one chunk specified, running serial version.
connect waves objects over date line
work on MRG
Only one chunk specified, running serial version.
connect waves objects over date line
work on IGW
Only one chunk specified, running serial version.
connect waves objects over date line
work on Kelvin
Only one chunk specified, running serial version.
connect waves objects over date line
work on Eig0
Only one chunk specified, running serial version.
connect waves objects over date line
00:00:09.58
======> 'check if Tb objects qualify as MCS (or selected storm type)
track clouds
break up long living cloud shield objects with watershed that have many elements
Only one chunk specified, running serial version.
1287it [00:00, 5604.51it/s]
Loop over 1287 objects
Loop over 77 objects
00:00:02.40
======> 'track high clouds in Tb field by excluding MCS objects
track clouds
break up long living cloud shield objects with wathershedding
Minimum distance between TB minima for watershed analysis: 40 grid cells
Only one chunk specified, running serial version.
make sure that each object has at least one grid cell with more than min_pr threshold of precipitation
340it [00:00, 7684.98it/s]
Loop over 328 objects
00:00:01.42
Save the object masks into a joint netCDF
Saved: moaap_output/202107_ERA5_ObjectMasks__dt-1h_MOAAP-masks.nc
00:00:05.37
Visualize Results

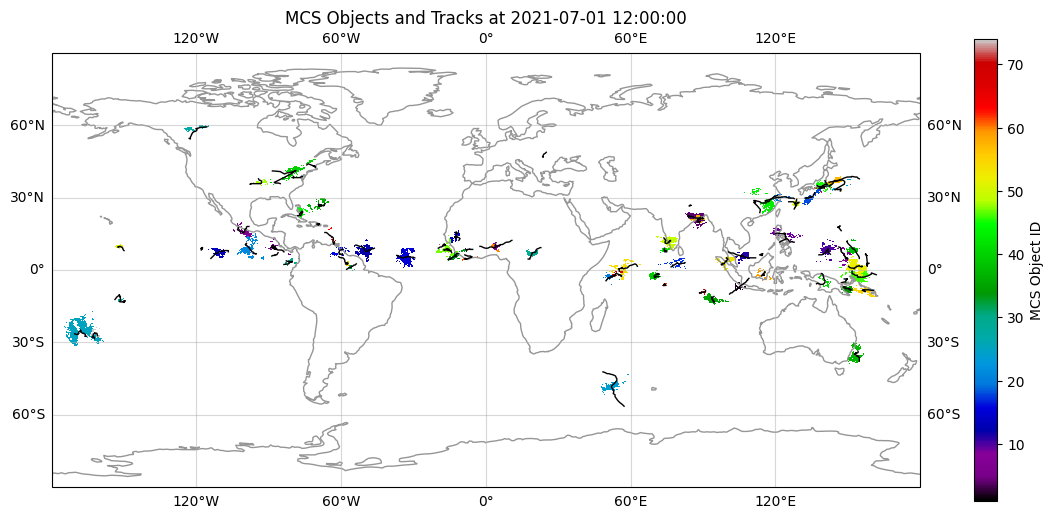

Let’s plot the identified MCS objects and their tracks on a map.
[5]:
# Load the output
output_file = f'{OutputFolder}/202107_ERA5_ObjectMasks__dt-1h_MOAAP-masks.nc'
if os.path.exists(output_file):
data_moaap = xr.open_dataset(output_file)
# Load MCS characteristics (tracks, size, etc.)
pkl_file = f'{OutputFolder}/MCSs_202107__dt-1h_MOAAP-masks.pkl'
if os.path.exists(pkl_file):
with open(pkl_file, 'rb') as f:
mcs_charac = pickle.load(f)
# Plotting
fig, ax = plt.subplots(subplot_kw={'projection': ccrs.PlateCarree()}, figsize=(14, 6))
ax.coastlines(color='#969696')
ax.gridlines(draw_labels=True, alpha=0.5)
# Select a specific time step (e.g., index 12)
t_idx = 12
if 'MCS_Tb_Objects' in data_moaap:
mcs_mask = data_moaap['MCS_Tb_Objects'][t_idx, :, :].values.astype(float)
mcs_mask[mcs_mask == 0] = np.nan
sc = ax.pcolormesh(data_moaap['lon'], data_moaap['lat'], mcs_mask,
cmap='nipy_spectral', transform=ccrs.PlateCarree())
plt.colorbar(sc, ax=ax, label='MCS Object ID')
# Plot tracks
if 'mcs_charac' in locals():
for obj_id in mcs_charac.keys():
track = mcs_charac[obj_id]['track']
ax.plot(track[:, 1], track[:, 0], 'k-', linewidth=1, transform=ccrs.PlateCarree())
ax.set_title(f'MCS Objects and Tracks at {time_datetime[t_idx]}')
plt.show()
else:
print("MOAAP output not found. Did the tracking run successfully?")
Part 1.2: Run with full dataset and analyze
In this section, we run MOAAP with the full set of atmospheric variables to identify a broader range of phenomena. We will then analyze the results, including object statistics and tracks. In the end, we will visualite some of the identified objects and generate a gif animation of their evolution over time.

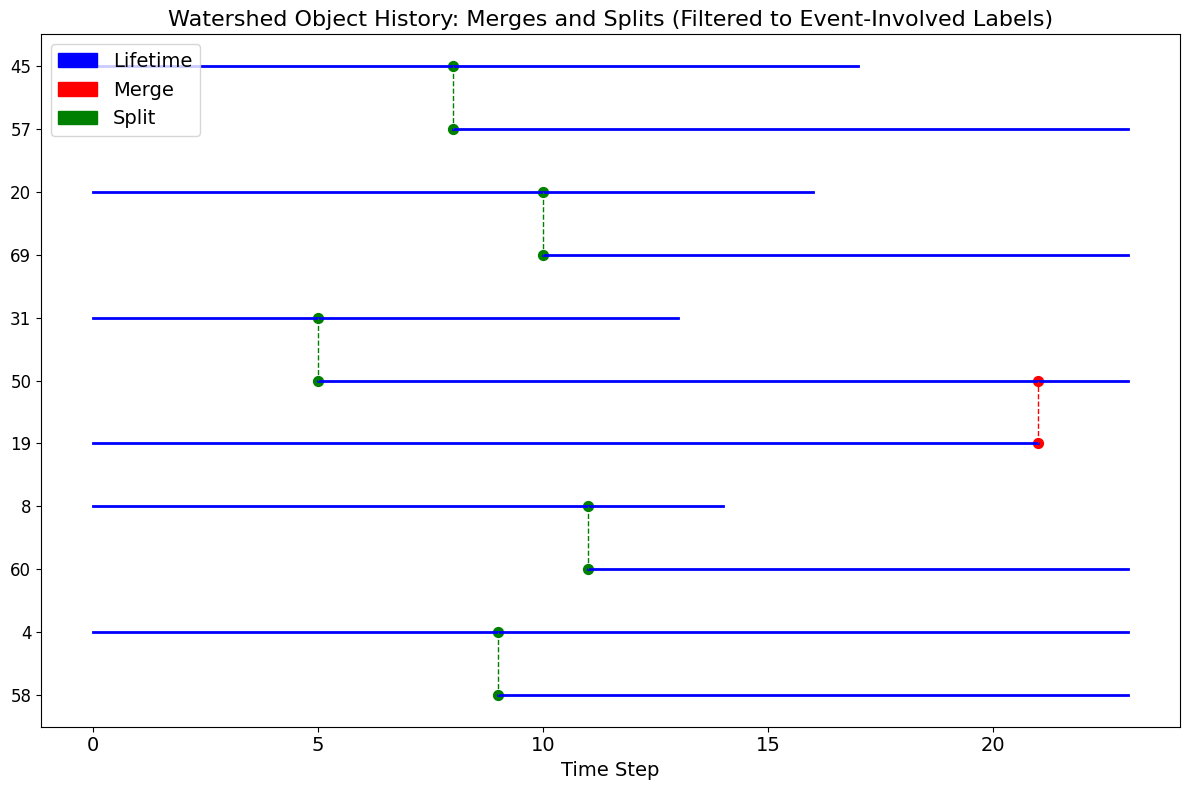

There will be a history diagram of the MCS objects showing their life cycles with merges and splits.
[7]:
print("Running MOAAP with full dataset (this may take a moment)...")
# Clean up previous run to ensure fresh output
if os.path.exists(f"{OutputFolder}/202107_ERA5_ObjectMasks__dt-1h_MOAAP-masks.nc"):
os.remove(f"{OutputFolder}/202107_ERA5_ObjectMasks__dt-1h_MOAAP-masks.nc")
object_split = moaap(
data_vars['lon'],
data_vars['lat'],
time_datetime,
dT,
Mask,
v850 = data_vars['V850'].values,
u850 = data_vars['U850'].values,
t850 = data_vars['T850'].values,
q850 = data_vars['Q850'].values,
slp = data_vars['SLP'].values,
ivte = data_vars['IVTE'].values,
ivtn = data_vars['IVTN'].values,
z500 = data_vars['Z500'].values,
v200 = data_vars['V200'].values,
u200 = data_vars['U200'].values,
pr = data_vars['PR'].values,
tb = data_vars['Tb'].values,
DataName = DataName,
OutputFolder = OutputFolder,
MinTimeJS = 12,
analyze_mcs_history = True
)
print("Tracking complete.")
Running MOAAP with full dataset (this may take a moment)...
The provided variables allow tracking the following phenomena
| phenomenon | tracking |
---------------------------
Jetstream | yes
PSL CY/ACY | yes
Z500 CY/ACY | yes
COLs | yes
IVT ARs | yes
MS ARs | yes
Fronts | yes
TCs | yes
MCSs | yes
clouds | yes
Equ. Waves | yes
---------------------------
======> track jetstream
track jet streams
break up long living jety objects with the watershed method
Only one chunk specified, running serial version.
Loop over 29 objects
00:00:02.85
======> track tropical waves
track tropical waves
work on ER
Only one chunk specified, running serial version.
connect waves objects over date line
work on MRG
Only one chunk specified, running serial version.
connect waves objects over date line
work on IGW
Only one chunk specified, running serial version.
connect waves objects over date line
work on Kelvin
Only one chunk specified, running serial version.
connect waves objects over date line
work on Eig0
Only one chunk specified, running serial version.
connect waves objects over date line
00:00:08.29
======> track moisture streams and atmospheric rivers (ARs)
break up long living MS objects with watershed
Only one chunk specified, running serial version.
Loop over 13 objects
00:00:02.36
======> track IVT streams and atmospheric rivers (ARs)
break up long living IVT objects with watershed
Only one chunk specified, running serial version.
Loop over 12 objects
check if MSs quallify as ARs
00:00:00.41
Loop over 10 objects
00:00:02.12
======> identify frontal zones
56194 object found
00:00:01.68
======> track cyclones from PSL
track cyclones
31 object found
break up long living CY objects using the watershed method
Only one chunk specified, running serial version.
track anti-cyclones
103 object found
break up long living ACY objects that have many elements
Only one chunk specified, running serial version.
Loop over 15 objects
Loop over 74 objects
00:00:05.98
======> track cyclones from Z500
track 500 hPa cyclones
break up long living cyclones using the watershed method
Only one chunk specified, running serial version.
connect cyclones objects over date line
track 500 hPa anticyclones
break up long living CY objects that heve many elements
Only one chunk specified, running serial version.
connect cyclones objects over date line
Loop over 13 objects
Loop over 9 objects
Check if cyclones qualify as Cut Off Low (COL)
Loop over 12 objects
00:00:02.60
======> 'check if Tb objects qualify as MCS (or selected storm type)
track clouds
break up long living cloud shield objects with watershed that have many elements
Only one chunk specified, running serial version.
1287it [00:00, 4566.62it/s]
Minimum distance between TB minima for watershed analysis: 8 grid cells
Pre-calculating all label 2D centers at each time slice...
Printing union array: {1: 1, 2: 2, 3: 3, 4: 4, 5: 5, 6: 6, 7: 7, 8: 8, 9: 9, 10: 10, 11: 11, 12: 12, 13: 13, 14: 14, 15: 15, 16: 16, 17: 17, 18: 18, 19: 31, 20: 20, 21: 21, 22: 22, 23: 23, 24: 24, 25: 25, 26: 26, 27: 27, 28: 28, 29: 29, 30: 30, 31: 31, 32: 32, 33: 33, 34: 34, 35: 35, 36: 36, 37: 37, 38: 38, 39: 39, 40: 40, 41: 41, 42: 42, 43: 43, 44: 44, 45: 45, 46: 46, 47: 47, 48: 48, 49: 49, 50: 31, 51: 51, 52: 52, 53: 53, 54: 54, 55: 55, 56: 56, 57: 45, 58: 4, 59: 59, 60: 8, 61: 61, 62: 62, 63: 63, 64: 64, 65: 65, 66: 66, 67: 67, 68: 68, 69: 20, 70: 70, 71: 71, 72: 72, 73: 73, 74: 74, 75: 75, 76: 76, 77: 77}
Printing events: [{'type': 'merge', 'time': 21, 'from_label': 19, 'to_label': 50, 'distance': 7.7347866632283155}, {'type': 'split', 'time': 5, 'from_label': 31, 'to_label': 50, 'distance': 7.962027789294027}, {'type': 'split', 'time': 8, 'from_label': 45, 'to_label': 57, 'distance': 7.078138663155187}, {'type': 'split', 'time': 9, 'from_label': 4, 'to_label': 58, 'distance': 2.914452903530629}, {'type': 'split', 'time': 11, 'from_label': 8, 'to_label': 60, 'distance': 4.711616280342696}, {'type': 'split', 'time': 10, 'from_label': 20, 'to_label': 69, 'distance': 5.847793961390533}]
Printing histories: {1: [1], 2: [2], 3: [3], 4: [58, 4], 5: [5], 6: [6], 7: [7], 8: [8, 60], 9: [9], 10: [10], 11: [11], 12: [12], 13: [13], 14: [14], 15: [15], 16: [16], 17: [17], 18: [18], 31: [50, 19, 31], 20: [20, 69], 21: [21], 22: [22], 23: [23], 24: [24], 25: [25], 26: [26], 27: [27], 28: [28], 29: [29], 30: [30], 32: [32], 33: [33], 34: [34], 35: [35], 36: [36], 37: [37], 38: [38], 39: [39], 40: [40], 41: [41], 42: [42], 43: [43], 44: [44], 45: [57, 45], 46: [46], 47: [47], 48: [48], 49: [49], 51: [51], 52: [52], 53: [53], 54: [54], 55: [55], 56: [56], 59: [59], 61: [61], 62: [62], 63: [63], 64: [64], 65: [65], 66: [66], 67: [67], 68: [68], 70: [70], 71: [71], 72: [72], 73: [73], 74: [74], 75: [75], 76: [76], 77: [77]}
Loop over 1287 objects
Loop over 77 objects
00:00:16.05
======> 'track high clouds in Tb field by excluding MCS objects
track clouds
break up long living cloud shield objects with wathershedding
Minimum distance between TB minima for watershed analysis: 40 grid cells
Only one chunk specified, running serial version.
make sure that each object has at least one grid cell with more than min_pr threshold of precipitation
340it [00:00, 6257.96it/s]
Loop over 328 objects
00:00:01.41
======> Check if cyclones qualify as TCs
100%|██████████| 15/15 [00:00<00:00, 123.38it/s]
00:00:00.79
Save the object masks into a joint netCDF
Saved: moaap_output/202107_ERA5_ObjectMasks__dt-1h_MOAAP-masks.nc
00:00:22.00
Tracking complete.
[10]:
# Generate Frames and GIF
from tqdm import tqdm
from PIL import Image
import glob
# Reload the output to ensure we have the latest masks
output_file = f'{OutputFolder}/202107_ERA5_ObjectMasks__dt-1h_MOAAP-masks.nc'
data_moaap = xr.open_dataset(output_file)
# Legend configuration
object_names = [
['cold clouds', '#737373', '-', 2],
['surface cyclones', 'k', '-', 2],
['mid-level cyclones', 'k', '--', 2],
['anticyclones', '#ff7f00', '-', 2],
['MCS', '#33a02c', '-', 2],
['moisture streams', 'r', '-', 2],
['jets', '#6a3d9a', '-', 2],
['Rossby waves', '#8c510a', '-', 3],
['mixed Rossby gravity waves', '#bf812d', '-', 1.5],
['inertia gravity waves', '#dfc27d','-', 3],
['Kelvin waves', '#abd9e9','-', 1.5],
['eastward inertia gravity waves', '#4575b4', '-', 3],
['fronts', '#cab2d6', '-', 2]
]
# Plotting configuration (Variable Name -> Style)
# Note: We check for both generic names and specific variable names (e.g. CY_z500_Objects)
object_plotting_config = {
'MCS_Tb_Objects': {'colors': '#33a02c', 'threshold': 0, 'linewidth': 1},
'CY_z500_Objects': {'colors': 'k', 'threshold': 0, 'linewidth': 1},
'COL_Objects': {'colors': 'k', 'threshold': 0, 'linewidth': 1, 'linestyles': '--'},
'ACY_z500_Objects': {'colors': '#ff7f00', 'threshold': 0, 'linewidth': 1},
'JET_Objects': {'colors': '#6a3d9a', 'threshold': 0, 'linewidth': 1},
'AR_Objects': {'colors': 'r', 'threshold': 0, 'linewidth': 1},
'FR_Objects': {'colors': '#cab2d6', 'threshold': 1, 'linewidth': 0.5},
'ER_Objects': {'colors': '#8c510a', 'threshold': 1, 'linewidth': 0.5}
}
# Create images directory
images_dir = 'images'
if not os.path.exists(images_dir):
os.makedirs(images_dir)
print("Generating frames...")
for tt in tqdm(range(len(time_datetime))):
fig, ax = plt.subplots(subplot_kw={'projection': ccrs.PlateCarree()}, figsize=(14,6))
ax.coastlines(color='#969696')
ax.gridlines(draw_labels=False, alpha=0.5)
# Plot available objects
for obj_name, config in object_plotting_config.items():
if obj_name in data_moaap.data_vars:
plot_args = {
'colors': config['colors'],
'levels': range(0, 2, 1),
'linewidths': config.get('linewidth', 1)
}
if 'linestyles' in config:
plot_args['linestyles'] = config['linestyles']
# Handle potential NaN or 0 masking
field = np.array(data_moaap[obj_name][tt,:,:])
if np.any(field > config['threshold']):
ax.contour(data_moaap['lon'], data_moaap['lat'],
field > config['threshold'],
**plot_args, transform=ccrs.PlateCarree())
ax.set_title(f'Objects identified by MOAAP at {str(time_datetime[tt])[:16]}')
# Create legend
legend_elements = []
for ob in range(len(object_names)):
line, = plt.plot([], [], color=object_names[ob][1],
linestyle=object_names[ob][2],
lw=object_names[ob][3],
label=object_names[ob][0])
legend_elements.append(line)
# ax.legend(handles=legend_elements, bbox_to_anchor=(1.01, 1), loc='upper left', borderaxespad=0.)
ax.legend(bbox_to_anchor=(1, 0.00), ncol=4)
# Save frame
plt.savefig(f'{images_dir}/{str(tt).zfill(3)}_frame.jpg', bbox_inches='tight', dpi=100)
plt.close(fig)
# Create GIF
print("Creating GIF...")
frames = [Image.open(image) for image in sorted(glob.glob(f"{images_dir}/*_frame.jpg"))]
gif_path = "phenomenon.gif"
if frames:
frames[0].save(gif_path, format="GIF", append_images=frames[1:],
save_all=True, duration=200, loop=0)
print(f"GIF saved to {gif_path}")
else:
print("No frames found to create GIF.")
Generating frames...
100%|██████████| 24/24 [00:13<00:00, 1.79it/s]
Creating GIF...
GIF saved to phenomenon.gif
[11]:
# Display the GIF
from IPython.display import Image as IPImage
if os.path.exists("phenomenon.gif"):
display(IPImage(open("phenomenon.gif", 'rb').read()))
else:
print("GIF not found.")
<IPython.core.display.Image object>
Part 2: Watershedding Algorithm Test
MOAAP relies heavily on watershedding for segmentation. Here, we test this core component using idealized synthetic data (moving “blobs”) to verify how the algorithm handles object separation and continuity in time.
We will compare:
2D Watershedding: Applied frame-by-frame.
3D Watershedding: Applied on the space-time cube (x, y, t).
Parallel 3D Watershedding: Applied on the space-time cube using parallel processing for large datasets.
[12]:
def generate_synthetic_moving_cells(seed: int = 42):
"""
Generates a 3D field (time, lat, lon) with synthetic moving circular 'storms'.
Background is 300K, storms have lower temperatures (e.g., 210K).
"""
np.random.seed(seed)
# n_time, n_lat, n_lon = 48, 200, 200
# n_cells = 30
# speed = 3.0
n_time, n_lat, n_lon = 24, 100, 100
n_cells = 10
speed = 2.0
# Initialize background field
data = np.full((n_time, n_lat, n_lon), 300.0)
yy, xx = np.ogrid[:n_lat, :n_lon]
boundary_val = 240.0
center_val = 215.0
for _ in range(n_cells):
duration = np.random.randint(6, (n_time * 3) // 4 + 1)
start = np.random.randint(0, n_time - duration + 1)
max_area = np.random.uniform(200, 1500)
max_radius = np.sqrt(max_area / np.pi)
margin = int(np.ceil(max_radius))
i0 = np.random.randint(margin, n_lat - margin)
j0 = np.random.randint(margin, n_lon - margin)
angle = np.random.uniform(0, 2 * np.pi)
vy = speed * np.sin(angle)
vx = speed * np.cos(angle)
half = duration / 2
for dt in range(duration):
t = start + dt
cy = i0 + vy * dt
cx = j0 + vx * dt
if dt < half:
r = 1 + (max_radius - 1) * (dt / half)
else:
r = max_radius - (max_radius - 1) * ((dt - half) / half)
dist = np.sqrt((yy - cy)**2 + (xx - cx)**2)
mask = dist <= r
vals = center_val + (boundary_val - center_val) * (dist / r)
slice_t = data[t]
slice_t[mask] = np.minimum(slice_t[mask], vals[mask])
data[t] = slice_t
return data
# Generate the data
synthetic_data = generate_synthetic_moving_cells(seed=43)
print(f"Generated synthetic data shape: {synthetic_data.shape}")
Generated synthetic data shape: (24, 100, 100)
Run Watershedding
We apply the watershedding algorithm. Note that for atmospheric data (like brightness temperature), we often invert the data (multiply by -1) because watershedding looks for the maxima, but storms are defined by low temperatures.
Before running the code, make sure to have min_dist at least set to 4 for the 3D cases to ensure proper object separation without numerical artifacts.
To run the parallel 3D code instead of the sequential version, set n_chunks_lat or n_chunks_lon to values greater than 1. The parallel code will also be called automatically if the memory overhead of the sequential code is larger than the available system memory.
The parallel code divides the data into spatial chunks with some overlap to ensure continuity of objects across chunk boundaries. In the end, the chunks are merged back together, leading to a little slower performance compared to the sequential version.
[13]:
# Parameters
tb_threshold = 241 # K
dT = 1
# 1. Run 2D Watershedding (Frame by Frame)
print("Running 2D Watershedding...")
C_objects_2d = watershed_2d_overlap(
synthetic_data * -1,
tb_threshold * -1,
-235,
5, # min distance
dT,
mintime=0,
connectLon=0,
extend_size_ratio=0.10
)
# 2. Run 3D Watershedding (Space-Time)
print("Running 3D Watershedding...")
C_objects_3d = watershed_3d_overlap_parallel(
synthetic_data * -1,
tb_threshold * -1,
-235,
5, # min distance
dT,
mintime=0,
connectLon=0,
extend_size_ratio=0.10,
n_chunks_lat=1,
n_chunks_lon=1
)
# 3. Run parallel 3D Watershedding (Space-Time)
print("Running parallel 3D Watershedding...")
C_objects_3d_pll = watershed_3d_overlap_parallel(
synthetic_data * -1,
tb_threshold * -1,
-235,
5, # min distance
dT,
mintime=0,
connectLon=0,
extend_size_ratio=0.10,
n_chunks_lat=2,
n_chunks_lon=2
)
print(f"Max 2D Objects: {np.max(C_objects_2d)}")
print(f"Max 3D Objects: {np.max(C_objects_3d)}")
print(f"Max Parallel 3D Objects: {np.max(C_objects_3d_pll)}")
Running 2D Watershedding...
100%|██████████| 24/24 [00:00<00:00, 261.12it/s]
100%|██████████| 23/23 [00:00<00:00, 441.38it/s]
Running 3D Watershedding...
Only one chunk specified, running serial version.
Running parallel 3D Watershedding...
Processing 4 chunks with 0.00 GB halo buffer...
Merging chunk results...
Applying labels in-place...
Max 2D Objects: 17
Max 3D Objects: 11
Max Parallel 3D Objects: 11
Visualization and Comparison
We create a side-by-side animation to compare the raw input, the 2D result, and the 3D result.
[14]:
def make_comparison_animation(raw_data, objects_2d, objects_3d, objects_3d_pll):
fig, (ax1, ax2, ax3, ax4) = plt.subplots(1, 4, figsize=(20, 5))
# Setup colormaps
# 'gist_ncar' provides high contrast for object labels
cmap_obj = plt.get_cmap('gist_ncar')
cmap_obj.set_under('lightblue') # Set background (value 0) to light blue
# Determine global max for consistent color scaling across 2D and 3D
max_2d = np.max(objects_2d)
max_3d = np.max(objects_3d)
max_3d_pll = np.max(objects_3d_pll)
# Initial frames
# 1. Raw Data
im1 = ax1.imshow(raw_data[0], cmap='viridis_r', vmin=210, vmax=300, origin='lower')
ax1.set_title('Raw Data (Tb)')
fig.colorbar(im1, ax=ax1, fraction=0.046, pad=0.04, label='Temperature [K]')
# 2. 2D Objects
# We pass the raw array (with 0s). vmin=1 ensures 0 is treated as "under" (background)
im2 = ax2.imshow(objects_2d[0], cmap=cmap_obj, vmin=1, vmax=max_2d, origin='lower')
ax2.set_title('2D Watershed')
fig.colorbar(im2, ax=ax2, fraction=0.046, pad=0.04, label='Object ID')
# 3. 3D Objects
im3 = ax3.imshow(objects_3d[0], cmap=cmap_obj, vmin=1, vmax=max_3d, origin='lower')
ax3.set_title('3D Watershed')
fig.colorbar(im3, ax=ax3, fraction=0.046, pad=0.04, label='Object ID')
# 4. parallel 3D Objects
im4 = ax4.imshow(objects_3d_pll[0], cmap=cmap_obj, vmin=1, vmax=max_3d_pll, origin='lower')
ax4.set_title('Parallel 3D Watershed')
fig.colorbar(im4, ax=ax4, fraction=0.046, pad=0.04, label='Object ID')
title = fig.suptitle('Time step: 0')
fig.tight_layout(rect=[0, 0.03, 1, 0.95])
def update(frame):
im1.set_data(raw_data[frame])
im2.set_data(objects_2d[frame])
im3.set_data(objects_3d[frame])
im4.set_data(objects_3d_pll[frame])
title.set_text(f'Time step: {frame}')
return [im1, im2, im3, title]
anim = animation.FuncAnimation(fig, update, frames=len(raw_data), interval=200, blit=False)
plt.close(fig)
return HTML(anim.to_jshtml())
# Generate and display the animation
animation_html = make_comparison_animation(synthetic_data, C_objects_2d, C_objects_3d, C_objects_3d_pll)
display(animation_html)
[ ]:
[ ]:
